Vertical sealless pump

VK/AVK/AVP

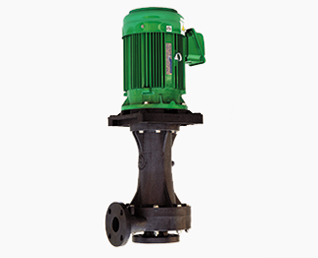

VK/VP Vertical sealless pump

・YD-20Y0VK1 ・YD-5003AVP3
・YD-2500VK1 ・YD-5005AVP3
・YD-4001AVK3 ・YD-6507AVP3
・YD-4002AVK3 ・YD-6510AVP3
・YD-4003AVK3
・YD-5003AVK3
・YD-5005AVK3
・YD-6505AVK3
・YD-6507AVK3
・YD-6510AVK3


Feature
High corrosion-resistant resin is adopted on Pump body.
Impeller is the special structure.
There is no trouble caused by heat generation or abrasion, because of the sealles structure.
As standard, Cut seal is equiped on some models to prevent liquid leaks.
The pump weight is reduced, because the frame is made of aluminum and the base is made of resin.
As standard, Dry seal is equiped for gas controls.
Full compatible with YD-20LO-E. (YD-20Y0VK)
It is easy to use the pump in tank when loosing Discharge flange. (YD-2500VK)
Examples of Use
VK series
Specific gravity 1.1.
It is possible to use the pump in/out of a tank. Perfect for a circulating pump in scrubber systems.
VP series
Specific gravity 1.4.
High pressure pump. For PWB and etching machines.
2500VK, 20Y0VK
For gold plating equipments
NEMA motor available

  • カタログダウンロード
  • CAD
  • movie
  • case
Model Bore (mm) Std. performance
(m_L/min.)
50/60Hz		 Limited
S.G.		 Output
(kW)		 Weight
(Kg)		 Limited
temp.
(℃)
Suc. Dis.

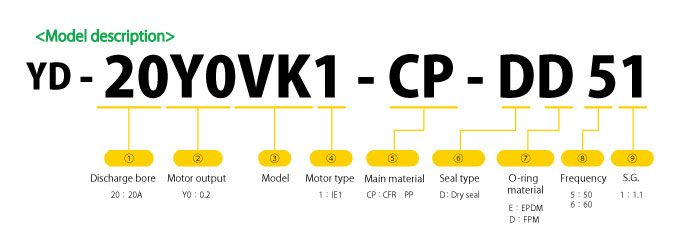

YD-20Y0VK1 25 20 4 - 60 1.1 0.2 15.0 70
Model Spec. Bore (mm) Std. performance
(m_L/min.)
50/60Hz		 Limited
S.G.		 Output
(kW)		 Weight
(Kg)		 Limited
temp.
(℃)
Suc. Dis.
YD-2500VK1 　 40 25 8 - 70 1.1 0.4 17.5 70
YD-2500VK1 L 18.5
YD-2500VK1 I 17.5
YD-2500VK1 IL 18.5
