Submersible magnet drive pump

GWN

GWN Submersible pump SUBMERSE YD-GWN series

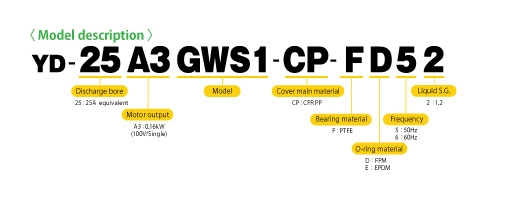

・YD-25A3GWS1

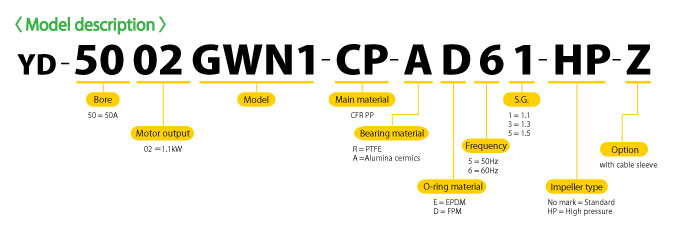

・YD-5002GWN1


Features
All wet parts are made of plastic for less parts' replacement for corrosion.
No mechanical seal oil leakage for the magne drive structure.

YD-25A3GWS

Easy installation. The residual liquid is only 10mm height. 100V/Single phase.
Examples of Use
For pumping up liquid from a chemical tank
For pumping up liquid from breakwater
For pumping up liquid from a deep chemical tank
Totable for emergency
CE standard : self-declaration of conformity

  • カタログダウンロード
  • CAD
  • movie
  • case
Model Frequency Std. performance Output
(kW)		 Phase
(PH)		 Insulation Weight
(Kg)
Total head
(m)		 Capacity
(L/min.)
YD-5002GWN1 50Hz 8.3 200 1.1 3 H 23.0
60Hz 8.3 200
YD-5002GWN1-HP 11.9 100

* The cable of the motor is made of 2PNCT. The standard cable length is 10 m, but it is available to extend to 20 m as an option.

スペース
Model Frequency Std. performance Output
(kW)		 Phase
(PH)		 Insulation Hose
bore
(mm)		 Weight
(Kg)
Total head
(m)		 Capacity
(L/min.)
YD-25A3GWS1 50Hz 4 50 0.16 1 E In.:25
Out.:33		 6.6
60Hz 4.5 50

* The cable of the motor is made of 2PNCT. The standard cable length is 5 m, but it is available to extend to 10 m as an option.
* The O-ring material is FPM or EPDM.
