Horizontal magnet drive pump

GS/GSF

GS/GSF Sealless magnetic drive pump

・YD-2500GS1 / GSF1
・YD-2501GS3 / GSF3
・YD-2502GS3 / GSF3
・YD-2503GS3 / GSF3
・YD-4000GS1 / GSF1
・YD-4001GS3 / GSF3
・YD-4002GS3 / GSF3
・YD-4003GS3 / GSF3
・YD-4003GSH3
・YD-4005GS3 / GSF3
・YD-5005GS3


Features

Low flow & high head ara available.
Possible to select depending on the specific gravity of the liquid to use.
Loose flnage is adopted for free installation.
Air lock prevention is built in.
Rare earth magnet is adopted for compact.
Terminal box is on the top for easy wiring.
Bearing is made of Sic as standard for corrosion & abrasion resistance.
Examples of Use
For transferring liquid in PCB equipment
For transferring liquid in water / air treatment
For circulating plating liquid
For transferring chemical liquid
CE standard : self-declaration of conformity
It is available to assemble NEMA motor.
  • catalog
  • CAD
  • movie
  • case
GS series (Main material: GRF PP)
Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)		 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-2500GS1 25 25 1.0 14 - 50 14  -50  0.4 19.5
1.3 10 - 50 10.5 - 50
1.5 9 - 50 9 - 50
YD-2501GS3 1.0 21 - 50 21.5 - 50 0.75 21.5
1.3 17 - 50 17 - 50
1.5 15 - 50 15 - 50
YD-2502GS3 1.0   —　 34 - 50 1.5 26.5
1.3 25.5 - 50 27 - 50
1.5 24 - 50 25 - 50
YD-2503GS3 1.1   —　 37 - 50 2.2 28.5
1.3   —　 34 - 50
1.5   —　 31 - 50

Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)		 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-4000GS1 40 40 1.05 11 - 100 11 - 100 0.4 16.5
1.3 9 - 100 7.5 - 100
1.5 7.5 - 100 —
YD-4001GS3 40 40 1.05 15 -150 15 - 150 0.75 19.5
1.3 12 - 150 12 - 150
1.5 10.5 - 150 10 - 150
YD-4002GS3 50 40 1.1 19 - 200 19 - 200 1.5 25.5
1.3 17 - 200 16 - 200
1.5 14.5 - 200 14.5 - 200
YD-4003GS3 50 40 1.1 23 - 200 25 - 200 2.2 27.5
1.3 21 - 200 24 - 200
1.5 19.5 - 200 20.5 - 200
YD-4003GSH3 50 40 1.1 32 - 100 33 - 100 2.2 29 (50Hz)
27.5(60Hz)
YD-4005GS3 50 40 1.1   —　 34 - 200 3.7 41.5
1.3   —　 31 - 200
1.4 24 - 200   —　
1.5   —　 28 - 200
YD-5005GS3 65 50 1.1 20 - 500 20 - 500 3.7 45.0
1.3 18 - 500 18 - 500
1.5 15 - 500 15 - 500

GSF series (Main material: CFR ETFE)
Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)		 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-2500GSF1 25 25 1.2 9 - 50 9 - 50 0.4 20.5
1.5 7 - 50 6.5 - 50
1.9 5.5 - 50   —　
YD-2501GSF3 1.2 16.5 - 50 15 - 50 0.75 22.5
1.5 14 - 50   —　
1.6   —　 11 - 50
1.9 11.5 - 50   —　
YD-2502GSF3 1.2 24 - 50 26 - 50 1.5 28.0
1.5 22 - 50 22 - 50
1.9 18 - 50 18 - 50
YD-2503GSF3 1.2   —　 33 - 50 2.2 30.0
1.5   —　 28 - 50
1.9 23.5 - 50 25.5 - 50

Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)		 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-4000GSF1 40 40 1.2 8.5 - 100 9 - 100 0.4 17.5
1.5 7 - 100 6 - 100
1.9 5.5 - 100   —　
YD-4001GSF3 40 40 1.2 12 - 150 11.5 - 150 0.75 20.5
1.5 9 - 150 9 - 150
1.9 8 - 100 9 - 100
YD-4002GSF3 50 40 1.2 18 - 200 17.5 - 200 1.5 27.0
1.5 15 - 200 14 - 200
1.9 12.5 - 200 10.5 - 200
YD-4003GSF3 50 40 1.2 21 - 200 22.5 - 200 2.2 29.0
1.5 19 - 200 19.5 - 200
1.9 15.5 - 200 15 - 200
YD-4005GSF3 50 40 1.2   —　 30 - 200 3.7 43.0
1.3 25 -200   —　
1.5   —　 27.5 - 200
1.9   —　 23 - 200


スペース

Small GS/GSF

GS/GSF Sealless magnetic drive pump

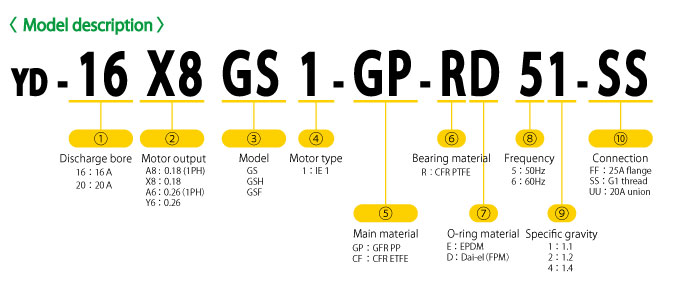

・YD-16X8GS1 / GSF1
・YD-20A6GS1 / GSF1
・YD-20Y6GS1 / GSF1
・YD-16A6GSH1
・YD-16Y6GSH1
・YD-20A6GSH1
・YD-20Y6GSH1


Features

Original impeller is durable and low cost.

YD-GSF series (ETFE type) are available for specific gravity 1.9.

Exclusive durable motor is adopted.

The terminal box is as standard.

The oil seal to protect against invasion by gas and mist is installed.

The thermal protector is built in for the prevention of the overload operation.
It is possible to select the way of the connection from 3 types.: Thread, Union or Flange.
Examples of Use
For water rinse
For high specific gravity liquid
For transferring liquid to high places
For the process of plating or etching.
For measures of space-saving
  • catalog
  • CAD
  • movie
  • case

Small GS series (Main material: GFR PP)
Model Connection Bore (mm) Std. performance (m_L/min.) Output
(kW)		 Phase
(PH)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
Std. point Std. S.G. Std. point Std. S.G.
YD-16X8GS1 SS (Thread) 20 16 5 - 50 1.1 6.5 - 50 1.1 0.18 3 6.2
UU (Union) 20 20
FF (Flange) 25A 25A
YD-20A6GS1 SS (Thread) 20 20 7 - 60 1.4 9.5 - 70 1.1 0.26 1 8.9
UU (Union) 20 20
FF (Flange) 25A 25A
YD-20Y6GS1 SS (Thread) 20 20 7 - 60 1.4 9.5 - 70 1.1 0.26 3 8.0
UU (Union) 20 20
FF (Flange) 25A 25A
Small GSH series (Main material: GFR PP)
Model Connection Bore (mm) Std. performance (m_L/min.) Output
(kW)		 Phase
(PH)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
Std. point Std. S.G. Std. point Std. S.G.
YD-16A6GSH1 SS (Thread) 20 16 12 - 24 1.1 17 - 25 1.1 0.26 1 8.9
UU (Union) 20 16
FF (Flange) 25A 25A
YD-16Y6GSH1 SS (Thread) 20 16 12 - 24 1.1 17 - 25 1.1 0.26 3 8.0
UU (Union) 20 20
FF (Flange) 25A 25A
YD-20A6GSH1 SS (Thread) 20 20 9.5 - 70 1.1 —   —　 0.26 1 8.9
UU (Union) 20 20
FF (Flange) 25A 25A
YD-20Y6GSH1 SS (Thread) 20 20 9.5 - 70 1.1   —　   —　 0.26 3 8.0
UU (Union) 20 20
FF (Flange) 25A 25A
Small GSF (Main material: CFR ETFE)
Model Connection Bore (mm) Std. performance (m_L/min.) Output
(kW)		 Phase
(PH)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
Std. point Std. S.G. Std. point Std. S.G.
YD-16X8GSF1 SS (Thread) 20 16 5 - 60 1.2 5 -60 1.2 0.18 3 6.6
UU (Union) 20 20 4.2 - 60 1.5 3.9 - 60 1.5
FF (Flange) 25A 25A 4.1 - 50 1.9 3.9 - 50 1.9
YD-20A6GSF1 SS (Thread) 20 20 7.5 - 70 1.2 8 - 70 1.2 0.26 1 9.2
UU (Union) 20 20 6.3 - 70 1.5 6.7 - 70 1.5
FF (Flange) 25A 25A 6.5 - 60 1.9 6.4 - 60 1.9
YD-20Y6GSF1 SS (Thread) 20 20 7.5 - 70 1.2 8 - 70 1.2 0.26 3 8.3
UU (Union) 20 20 6.3 - 70 1.5 6.7 - 70 1.5
FF (Flange) 25A 25A 6.5 - 60 1.9 6.4 - 60 1.9
