Mechanical seal pump

GSM

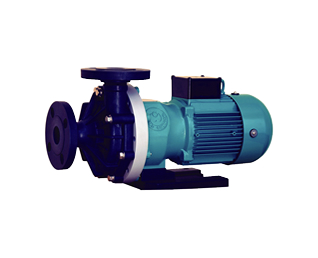

GSM Mechanical seal pump

End suction type
・YD-2500GSM1
・YD-4001GSM3
・YD-4002GSM3


Features
It is suitable for transferring waste water with a small amount of slurry to adopt the open-impeller.
Original mechanical seal without outer cooling liquid is adopted.
It is possible to select the sealing material, Carbone (Standard) or HM (Teflon).
The maintenance of the sealing parts is periodical, long life.
Examples of Use
For transferring waste water with a small amount of slurry
For pumping liquid up to a tank for original waste water
  • catalog
  • CAD
  • movie
  • case
Model Bore (mm) Std. performance
(m_L/min.)
50 / 60Hz		 Limited
S.G.		 Output
(kW)		 Weight
with Motor
(Kg)		 Limited
temparature
(℃)
Suc. Dis.
YD-2500GSM(F)1 25 25 8 - 60 11 0.4 16.0 50
YD-4001GSM(F)3 40 40 10 - 110 0.75 19.0
YD-4002GSM(F)3 50 40  10 - 220 1.5 25.0


スペース

GVM

GVM Mechanical seal pump

Self-priming type
・YD-2500GVM1
・YD-4001GVM3
・YD-5002GVM3


Features
It is suitable for transferring waste water with a small amount of slurry to adopt the open-impeller.
Original mechanical seal without outer cooling liquid is adopted.

It is possible to select the sealing material, Carbone (Standard) or HM (Teflon).
The maintenance of the sealing parts is periodical, long life.
Selp-priming liquid is remained and selp-priming ability is kept.
Examples of Use
For transferring waste water with a small amount of slurry.
For pumping liquid up to a tank for original waste water
  • catalog
  • CAD
  • movie
  • case
Model Bore (mm) Std. performance
(m_L/min.)
50 / 60Hz		 Limited
S.G.		 Output
(kW)		 Weight
with Motor
(Kg)		 Limited
temparature
(℃)
Suc. Dis.
YD-2500GVM(F)1 25 25 8 - 40 11 0.4 18.5 50
YD-4001GVM(F)3 40 40 8 - 110 0.75 22.5
YD-4002GVM(F)3 50 50  10 - 200 1.5 29.0
