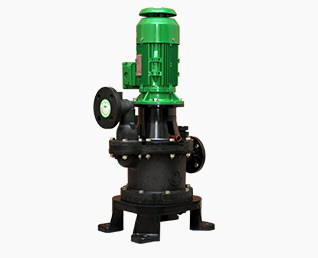

Vertical valveless self-priming pump

NSF / SF

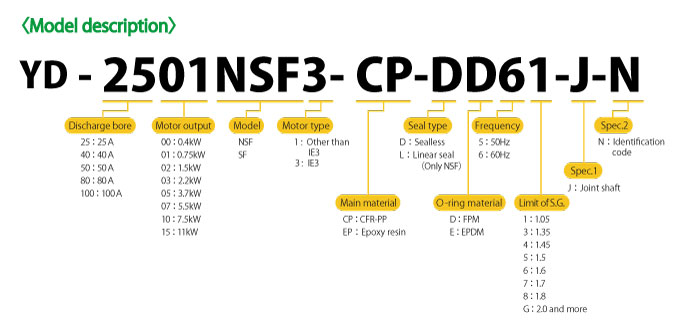

NSF/NSF-LR Self-priming centrifugal pump YD-NSF、YD-NSF-LR series

・YD-2500NSF1 ・YD-5002NSF3
・YD-2501NSF3 ・YD-5003NSF3
・YD-2502NSF3 ・YD-5005NSF3
・YD-4001NSF3 ・YD-8005SF3
・YD-4002NSF3 ・YD-8007SF3
・YD-4003NSF3 ・YD-8010SF3
  ・YD-10007SF3
  ・YD-10010SF3


Features
NSF
There is no trouble by heat generation, abrasion or liquid leaks, becuase of Sealless pump without sliding parts.
Corrosion-resistant resin (CFRPP) is adopted on Wet Parts Kit. It is possible to use for strong acid and alkaline.
No trouble by heat or abrasion, because of the valveless & sealless pump.
Examples of Use
NSF
For pumping up liquid from a wastewater pit or chemical tank
For circulating plating liquid
NEMA motor available

  • catalog
  • CAD
  • movie
  • case
Frequency Model Material Spec.1 Spec.2 Bore (mm) Std. performance
(m_L/min.		 Output
(kW)		 Limited
S.G.		 Weight
(Kg)		 Limited
temp.
(℃)
Suc. Dis.
50Hz YD-2500NSF1 CP   —　   —　 25 25 6 - 60 0.4 1.05 24.0 90
YD-2501NSF3 0.75 1.7 44.0
YD-2502NSF3 J 7 - 60 1.5 2.0 41.0
YD-4001NSF3   —　 40 40 7 - 100 0.75 1.05 48.0
YD-4002NSF3 1.5 1.8 50.5
YD-4003NSF3 J 2.2 2.0 58.0
YD-5002NSF3   —　 N 50 50 9 - 200 1.5 1.05 55.5
YD-5003NSF3 N 2.2 1.45 56.0
YD-5005NSF3 J N 3.7 2.0 72.0
YD-8005SF3 EP   —　   —　 80 80 15 - 350 3.7 1.05 150.0 70
YD-8007SF3 5.5 1.5 178.0
YD-10007SF3 100 100 12 - 700 5.5 1.05 203.0
YD-10010SF3 7.5 1.4 203.0
60Hz YD-2501NSF3 CP   —　   —　 25 25 8 - 70 0.75 1.05 44.0 90
YD-2502NSF3 J 1.5 1.8 41.0
YD-4002NSF3   —　 40 40 9 - 150 1.5 1.05 50.5
YD-4003NSF3 J 2.2 1.45 58.0
YD-5003NSF3   —　 N 50 50 11 - 200 2.2 1.05 56.0
YD-5005NSF3 J N 3.7 1.6 72.0
YD-8007SF3 EP   —　 — 80 80 18 - 350 5.5 1.05 178.0 70
YD-8010SF3 7.5 1.35 178.0
YD-10010SF3 100 100 17 - 700 7.5 1.05 203.0
