Valveless self-priming magnet drive pump

GV/GVF

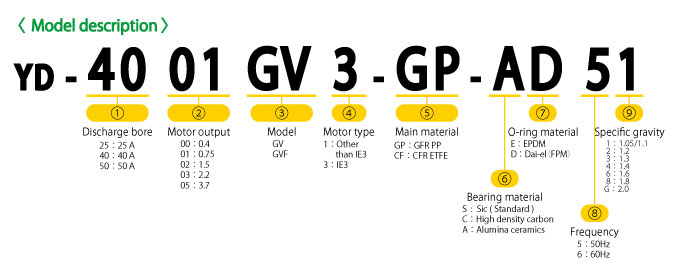

GV/GVF Valveless self-priming magnetic drive pump

・YD-2500GV1
・YD-2501GV3 / GVF3
・YD-2502GV3 / GVF3
・YD-4001GV3 / GVF3
・YD-4002GV3 / GVF3
・YD-4003GV3 / GVF3
・YD-5002GV3 / GVF3
・YD-5003GV3 / GVF3
・YD-5005GV3 / GVF3




Feature
Self-priming ability is 5m per 2 minutes for the valveless structure.
It keeps priming liquid for re-start by oneself.
Maximum capacity: 360L/min.
Maximum capacity: 415L/min
Motor output: 0.4 to 3.7kW
Examples of Use
For pumping liquid up from the top of the tank
For pumping liquid up from a hight or deep tank
Horizontal or up and down piping is available against earthquake
For liquid easy locked by gas
For transferring high specific gravity liquid
CE standard : self-declaration of conformity
It is available to assemble NEMA motor.

  • catalog
  • CAD
  • movie
  • case

GS series (Main material: GFR PP)

Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)		 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-2500GV1 25 25 1.05 8 - 80 8 - 80 0.4 18.5
YD-2501GV3 25 25 1.1   — 　 12 - 110 0.75 20.5
1.8   — 　 8 - 80
2.0 8 - 80   — 　
YD-2502GV3 25 25 2.0  —　 12 - 110 1.5 24.5
YD-4001GV3 40 40 1.1 11 - 160   — 　 0.75 22.5
YD-4002GV3 40 40 1.8 11 - 160 17 - 200 1.5 26.5
YD-4003GV3 40 40 1.4   — 　 17 - 200 2.2 29.0
YD-5002GV3 50 50 1.1 17 - 200   — 　 1.5 29.5
YD-5003GV3 50 50 1.1 17 - 250 18 - 250 2.2 32.0
1.4 17 - 200   — 　
YD-5005GV3 50 50 1.2   — 　 28 - 200 3.7 53.0
1.6   — 　 18 - 250
1.8 18 - 250 —

GVF series (Main material: CFR ETFE)
Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)
 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-2501GVF3 25 25 1.1  —　 12 -100 0.75 23.0
1.6  —　 8 - 80
2.0 8 - 80  —　
YD-2502GVF3 25 25 1.8  —　 12 - 105 1.5 27.0
YD-4001GVF3 40 40 1.1 10 - 110  —　 0.75 25.0
YD-4002GVF3 40 40 1.1  —　 15 - 200 1.5 29.0
1.6 11 - 160  —　
YD-4003GVF3 40 40 1.3  —　 16 - 200 2.2 31.5
YD-5002GVF3 50 50 1.1 15 - 200  —　 1.5 32.5
YD-5003GVF3 50 50 1.1 17 - 250 17 - 250 2.2 35.0
1.4 17 - 200  —　
YD-5005GVF3 50 50 1.1  —　 23 - 300 3.7 56.0
1.6  —　 18 - 250
1.8 18 - 250  —　


スペース

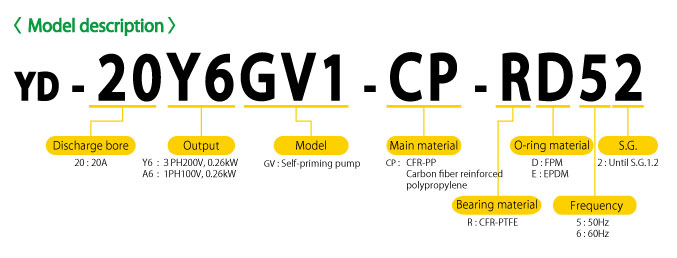

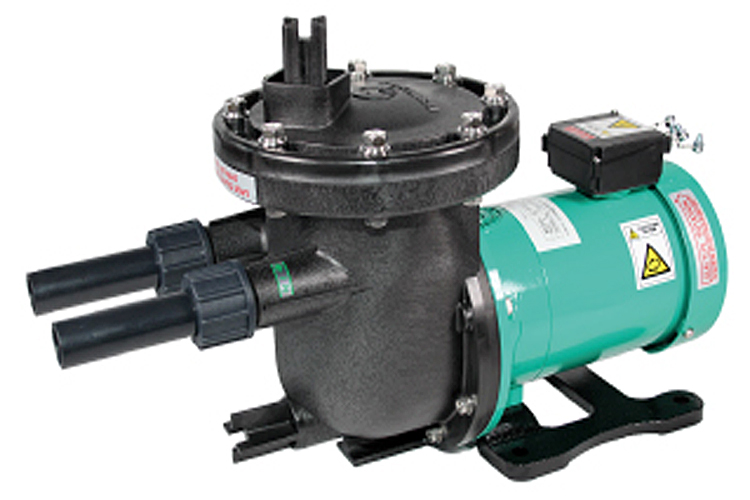

Small GV/GVF

GV/GVF Valveless self-priming magnetic drive pump

・YD-20Y6GV1
・YD-20A6GV1
・YD-2000GV1




Feature
It is made of CFR PP and can be used for strong alkari liquid or liquid with hydrofluoric acid.
Single phase is available. (Only 0.26kW)
It keeps priming liquid for re-start by oneself.
The union connectin makes piping easy.
Examples of Use
For circulating plating liquid
For pumping liquid up from high or deep tank
  • catalog
  • CAD
  • movie
  • case
Model Bore
(mm)		 Limited
S.G.		 Std. performance
(m_L/min.)		 Output
(kW)		 Weight
with Motor
(Kg)
Suc. Dis. 50Hz 60Hz
YD-20Y6GV1 20A Union
(G1 Thread)		 1.2 6 - 30 7 - 30 0.26 10.0
YD-20A6GV1
YD-2000GV1 1.6 0.4 11.5
