Vertical sealless stainless pump

LON-SU

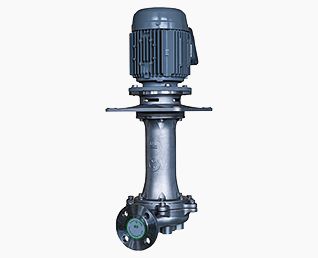

LON-SU Vertical sealless pump

・YD-4001LON3
・YD-4002LON3
・YD-4003LON3
・YD-5003LON3
・YD-5005LON3


Features
Stainless-steel pump body
Perfect for pumping at constant liquid level in circulating tanks

Less trouble caused by heat generation or abrasion as well as it hardly have a negative effect by liquid with a small amount of slurry.
Examples of Use
For desmear treatment
For blackening treatment
For electroless nickel plating
For high temperatur washing machine
NEMA motor available

  • catalog
  • CAD
  • movie
  • case
Model Bore (mm) Std. performance (m-L/min.) Limited
S.G.		 Output
(kW)		 Weight
(Kg)		 Limited
temp.
(℃)
Suc. Dis. 50Hz 60Hz
YD-4001LON3 50 40 10 - 100 7 - 100 1.1 0.75 41.0 80
YD-4002LON3 50 40 13 - 200 13 - 200 1.5 43.0
YD-4003LON3 50 40   —　 14 - 350 2.2 45.0
YD-5003LON3 65 50 14 - 350   —　 2.2 45.0
YD-5005LON3 65 50 18 - 500 18 - 500 3.4 60.0
