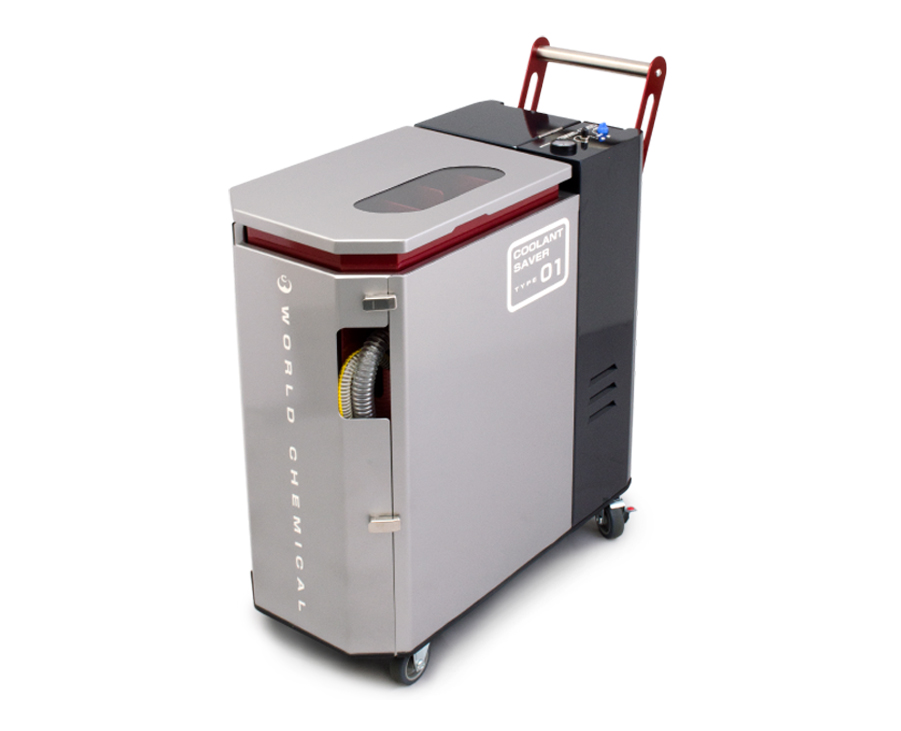

Coolant floating oil collecting system "COOLANT SAVER PORTABLE"

CSP

Floating oil collecting system for machine YD-16CSN series
・YD-150FS-16CSPN


・YD-150FS-16CSP (Old type)


Features

No need uptoward elelctric works for air drive.
The separation by difference in specific gravity is adopted and no consumables, so no need to replace parts.

Possilbe to select a float from 2 types.                                    ・ Standard float: 3 points swivel joint is adopted to               prevent the effects of hoses.                                        ・ Small float: Posssible to use for a narrow or sharrow           tank.

A strainer is as standard for easy cleaning. If chips are mixed with floating oil, the pump does not clog.

Easy to move with caster. It can be used for multiple machine tools.
The float and hoses are stored in the main body.
Use
For collecting floating soluble oil on coolant in a machining center, of lathe, griding machine.
For collecting floating oil in a washing machine.
For collecting floating oil in a small tank.
