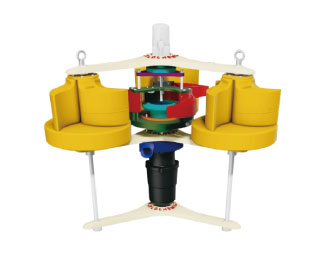

Floating objects rotary collecting system

RSS

DC

 ・YD-380FKR

 ・YD-700RSS

 ・YD-1200RSS



Features

The double scrapers break down and collect massive scum.
The double float system helps maintain collection efficiency, regardless of surface waves.
Examples of Use
Paint industry: For the paint waste water pit for auto parts.
Food industry: For the waste water pit with lard or palm oil.

Food processing: For the waste water pit with cleaning of containers.

Iron & Steel industry: For the waste oily water pit with scale   floating on the circulation water for rolling cooling.

Termal power generation: For the waste oil pit for high viscosity oil or waste oil with micro charcoal powder.

  • catalog
  • CAD
  • movie
  • case
Model 380FKR 700RSS 1200RSS
Submersible pump: 3 phase, 200V 4P, 0.25kW 2P, 0.4kW 4P, 0.75kW
Outline A (mm) 380 x 590 700 1200
Surface of liquid B (mm) 365 240 310
Surface of liquid C (mm) 422 558 656
Total height D (mm) 787 798 966
Motor 25W 30W 25W
Hose bore Φ40 Φ40 Φ50
Weight Approx. 20 kg Approx. 22 kg Approx. 60 kg
Material PP/Aluminum/Cast iron PP/Aluminum/SUS PP/Aluminum/SUS
* It is available to provid the special unit for high temperature (80℃).
* The contents are subject to change for improvement without notice.
* Regarding the motor voltage, 1 phase 100V / 200V are also available.
* It is available to attach the power distribution box as an option.
* The special unit 600RSS (for a manhole) & 800RSS (against bubble) are also available.
